IEEE PAINE 2020: Decoding & Defending the Trusted Platform Module Against Malicious Hardware Implants

January 11, 2021

River Loop Security’s team members presented at IEEE International Conference on Physical Assurance and Inspection of Electronics (PAINE). The presentation provided a background on hardware implants, secure boot, and background on the Trusted Platform Module (TPM). We then focused on explaining and demonstrating our team’s work developing an TPM interposer and decoder. It concluded in discussing defending agaisnt malicious hardware implants.

Suehayla (Sue) Mohieldin, Cybersecurity and Electrical Engineer at River Loop Security, presented “Decoding & Defending the Trusted Platform Module Against Malicious Hardware Implants” at the virtual conference on December 16, 2020 on behalf of the project team1.

The presentation provided a background on hardware implants, secure boot, and background on the Trusted Platform Module (TPM). We then focused on explaining and demonstrating our team’s work developing an TPM interposer and decoder. It concluded in discussing defending agaisnt malicious hardware implants.

Our TPM interposer presented in this talk was designed to work on a TPM running on a Low Pin Count (LPC) bus, which is a bus commonly used for TPMs in enterprise hardware (e.g., rack mount servers, etc) versus the I2C-bus that prior work on TPM interposers had been conducted on (a I2C TPM for instance is optionally used with a Raspberry Pi).

In addition to developing an interposer which runs in an FPGA, we also created a sniffer that was implemented and tested in Golang, and then was ported to the FPGA to decode traffic and identify signals.

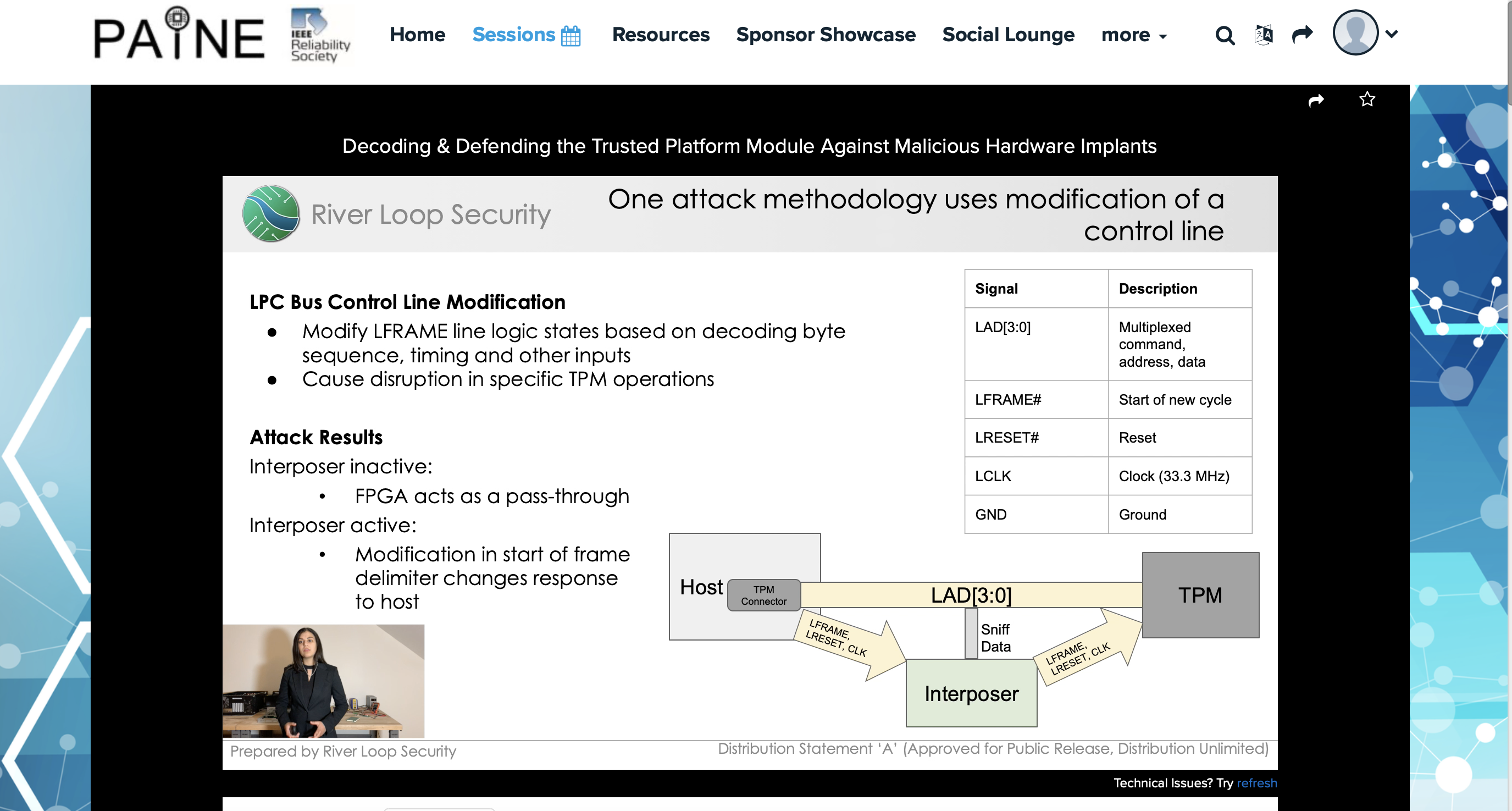

Example Attack Leveraging Control Line

This presentation was based upon work supported by DARPA under the Safeguards against Hidden Effects and Anomalous Trojans in Hardware (or SHEATH)2 program, in the Microsystems Technology Office under DARPA PM Keith Rebello – and we thank them for their support of this research3.
